UT-047C/DA50047

Semi-Rigid Coaxial Cable


MECHANICAL CHARACTERISTICS

Outer Conductor Diameter, inch (mm) 0.047+/-0.001  (1.194+/-0.0254)
Dielectric Diameter, inch (mm) 0.037  (0.94)
Center Conductor Diameter, inch (mm) 0.0113+/-0.0005  (0.287+/-0.0127)
Maximum Length, feet (meters) 20  (6.1)
Minimum Inside Bend Radius, inch (mm) 0.05  (1.27)
Weight, pounds/100 ft. (kg/100 meters) 0.38  (0.57)

ELECTRICAL CHARACTERISTICS

Impedance, ohms 50+/-1.0
Frequency Range GHz DC-109
Velocity of Propagation % 70
Capacitance, pF/ft. (pF/meter) 29.3 (96.1)
Typical Insertion Loss, dB/ft. (dB/meter)
and Average Power Handling, Watts CW at 20
degrees Celsius and Sea level
Frequency Insertion Loss Power
0.5 GHz
1.0 GHz
5.0 GHz
10.0 GHz
20.0 GHz
0.24 (0.79)
0.34 (1.12)
0.79 (2.59)
1.14 (3.73)
1.66 (5.44)
80.5
56.6
24.7
17.2
11.9
Corona Extinction Voltage, VRMS @ 60 Hz 1000
Voltage Withstand, VRMS @ 60 Hz 2000

ENVIRONMENTAL CHARACTERISTICS

Outer Conductor Integrity Temperature, Deg Celsius 175
Maximum Operating Temperature, Deg Celsius 150

MATERIALS

Outer Conductor Copper
Dielectric PTFE
Center Conductor SPC

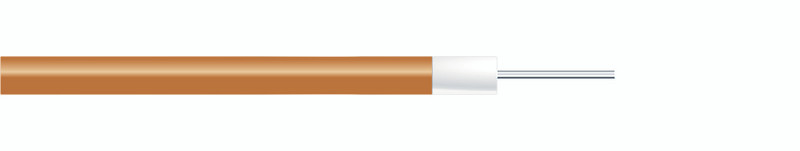

CUTAWAY
