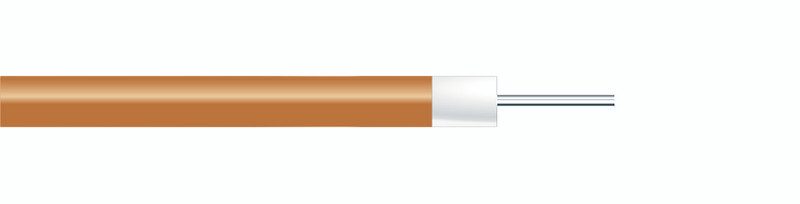

UT-085C-LL semi rigid coax cable RG405

UT-085C-LL

Brand: Micro-Coax

SKU: UT-085C-LL
Share Share
Print Share
$30.00
  • Availability:
    Stocked Item – Ships from Tek-Stock
  • Shipping:
    Calculated at Checkout

Price Breaks Per Foot:

Below are the price breaks per ft. Semi-Rigid Coax Cable is sold as 5 ft. straight lengths (pieces). Maxform and M-Flex cable sold by coil / reel. Place order for total footage required. eg. 25ft=25, 100ft=100. Please email sales@tek-stock.com for qtys over 500ft

  • Buy 5 - 9 ft. and pay only $29.75 per ft.
  • Buy 10 - 14 ft. and pay only $18.25 per ft.
  • Buy 15 - 24 ft. and pay only $14.12 per ft.
  • Buy 25 - 49 ft. and pay only $9.75 per ft.
  • Buy 50 - 99 ft. and pay only $7.35 per ft.
  • Buy 100 - 299 ft. and pay only $5.12 per ft.
  • Buy 300 - 0 ft. and pay only $4.95 per ft.
Attention International Customers: Please complete the BIS-711 Form (end user statement). Processing your order may take 2-3+ additional days.
Data Sheet View Datasheet
customer Service
Contact our Sales Team for a tailored experience
978-792-5247 Email usEmail us
Adding to cart… The item has been added

Key Specifications

MECHANICAL CHARACTERISTICS:
(.085 Semi-Rigid Coax Cable)
Outer Conductor Diameter, inch (mm):
0.0865+/-0.001 (2.197+/-0.0254)
Dielectric Diameter, inch (mm):
0.066 (1.676)
Center Conductor Diameter, inch (mm):
0.0226+/-0.0005 (0.574+/-0.0127)
Maximum Length, feet (meters):
20 (6.1)
Minimum Inside Bend Radius, inch (mm):
0.25 (6.35)
Weight, pounds/100 ft. (kg/100 meters):
1.39 (2.07)
ELECTRICAL CHARACTERISTICS:
Low Loss Microwave Cable
Impedance, ohms:
50+/-1.5
Frequency Range GHz:
DC-64
Velocity of Propagation %:
77
Capacitance, pF/ft. (pF/meter):
26.6 (87.3)
Typical Insertion Loss,:
Frequency Insertion Loss Power
and Average Power Handling, Watts:
0.5 GHz 0.12 (0.41) 340
CW at 20:
1.0 GHz 0.18 (0.58) 239
Corona Extinction Voltage, VRMS @ 60 Hz:
1500
Voltage Withstand, VRMS @ 60 Hz:
2500
ENVIRONMENTAL CHARACTERISTICS:
Refer to Manufacturer Datasheet
Outer Conductor Integrity Temperature, Deg Celsius:
Not Applicable
Maximum Operating Temperature, Deg Celsius:
250
MATERIALS:
Refer to Manufacturer Datasheet
Outer Conductor:
Copper
Dielectric:
LD PTFE
Center Conductor:
SPC
Technical Overview:
UT-085C-LL is a low loss .085 inch semi-rigid coax cable with 77% velocity of propagation, offering dimensional and phase stability for microwave and RF signal transmission requiring stable 50 ohm impedance and excellent shielding.
