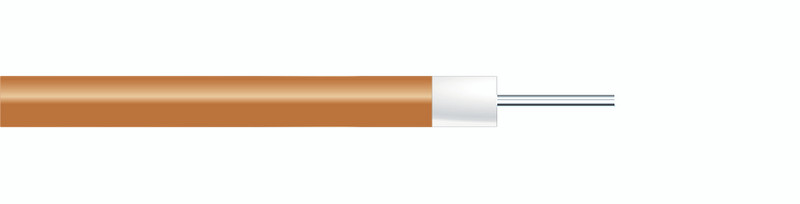

UT-085C-15

UT-085C-15

$17.29
Price breaks per foot:

Below are the price breaks per ft. Semi-Rigid Coax Cable is sold as 5 ft. straight lengths (pieces). Maxform and M-Flex cable sold by coil / reel. Place order for total footage required. eg. 25ft=25, 100ft=100. Please email sales@tek-stock.com for qtys over 500ft

  • Buy 15 - 24 ft. and pay only $15.40 per ft.
  • Buy 25 - 49 ft. and pay only $10.95 per ft.
  • Buy 50 - 99 ft. and pay only $8.15 per ft.
  • Buy 100 or above ft. and pay only $6.90 per ft.
Current Stock:
5776
Adding to cart… The item has been added
Description

UT-085C-15

Semi-Rigid Coaxial Cable
MECHANICAL CHARACTERISTICS
Outer Conductor Diameter, inch (mm) 0.0865+/-0.001  (2.197+/-0.0254)
Dielectric Diameter, inch (mm) 0.066  (1.676)
Center Conductor Diameter, inch (mm) 0.046+/-0.001  (1.168+/-0.0254)
Maximum Length, feet (meters) 20  (6.1)
Minimum Inside Bend Radius, inch (mm) 0.125  (3.175)
Weight, pounds/100 ft. (kg/100 meters) 1.76  (2.62)
ELECTRICAL CHARACTERISTICS
Impedance, ohms 15+/-1.0
Frequency Range GHz DC-47
Velocity of Propagation % 70
Capacitance, pF/ft. (pF/meter) 96.7 (317.4)
Typical Insertion Loss, dB/ft. (dB/meter)
and Average Power Handling, Watts CW at 20
degrees Celsius and Sea level		 Frequency Insertion Loss Power
0.5 GHz
1.0 GHz
5.0 GHz
10.0 GHz
20.0 GHz		 0.25 (0.83)
0.36 (1.17)
0.82 (2.70)
1.19 (3.90)
1.73 (5.68)		 103.5
72.8
31.8
22.1
15.3
Corona Extinction Voltage, VRMS @ 60 Hz 850
Voltage Withstand, VRMS @ 60 Hz 2000
ENVIRONMENTAL CHARACTERISTICS
Outer Conductor Integrity Temperature, Deg Celsius 150
Maximum Operating Temperature, Deg Celsius 125
MATERIALS
Outer Conductor Copper
Dielectric PTFE
Center Conductor SPC
CUTAWAY
