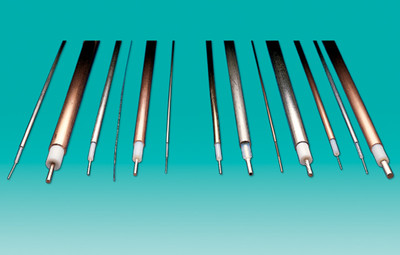

UT-085B-SS

Price:
$43.13

Cable Pricing per Foot

Quantity:


Product Description

Cryogenic Ultra Low Thermally Conductive Coax Cable







UT-085B-SS

Semi-Rigid Coaxial Cable


MECHANICAL CHARACTERISTICS

Outer Conductor Diameter, inch (mm) 0.0865+/-0.001  (2.197+/-0.0254)
Dielectric Diameter, inch (mm) 0.066  (1.676)
Center Conductor Diameter, inch (mm) 0.0201+/-0.0005  (0.511+/-0.0127)
Maximum Length, feet (meters) 20  (6.1)
Minimum Inside Bend Radius, inch (mm) 0.25  (6.35)
Weight, pounds/100 ft. (kg/100 meters) 1.25  (1.86)

ELECTRICAL CHARACTERISTICS

Impedance, ohms 50+/-2.0
Frequency Range GHz DC-61
Velocity of Propagation % 70
Capacitance, pF/ft. (pF/meter) 29 (95.1)
Typical Insertion Loss, dB/ft. (dB/meter)
and Average Power Handling, Watts CW at 20
degrees Celsius and Sea level
Frequency Insertion Loss Power
0.5 GHz
1.0 GHz
5.0 GHz
10.0 GHz
20.0 GHz
0.31 (1.02)
0.44 (1.46)
1.02 (3.33)
1.46 (4.79)
2.11 (6.94)
143.1
100.8
44.3
30.9
21.3
Corona Extinction Voltage, VRMS @ 60 Hz 1500
Voltage Withstand, VRMS @ 60 Hz 5000

ENVIRONMENTAL CHARACTERISTICS

Outer Conductor Integrity Temperature, Deg Celsius 225
Maximum Operating Temperature, Deg Celsius 200

MATERIALS

Outer Conductor 304 Stainless Steel
Dielectric PTFE
Center Conductor SP BeCu

CUTAWAY
