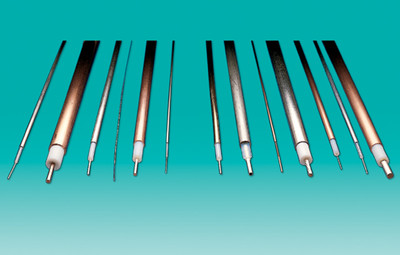

UT-085-75/CA75085
( )

Semi-Rigid Coaxial Cable
MECHANICAL CHARACTERISTICS
Outer Conductor Diameter, inch (mm) 0.085+/-0.001  (2.159+/-0.0254)
Dielectric Diameter, inch (mm) 0.067  (1.702)
Center Conductor Diameter, inch (mm) 0.0113+/-0.0005  (0.287+/-0.0127)
Maximum Length, feet (meters) 20  (6.1)
Minimum Inside Bend Radius, inch (mm) 0.125  (3.175)
Weight, pounds/100 ft. (kg/100 meters) 1.2  (1.79)
ELECTRICAL CHARACTERISTICS
Impedance, ohms 75+/-1.0
Frequency Range GHz DC-67
Velocity of Propagation % 70
Capacitance, pF/ft. (pF/meter) 19.3 (63.3)
Typical Insertion Loss, dB/ft. (dB/meter)
and Average Power Handling, Watts CW at 20
degrees Celsius and Sea level		 Frequency Insertion Loss Power
0.5 GHz
1.0 GHz
5.0 GHz
10.0 GHz
20.0 GHz		 0.15 (0.49)
0.21 (0.69)
0.49 (1.61)
0.71 (2.33)
1.06 (3.48)		 173.3
121.4
52.2
35.9
24.4
Corona Extinction Voltage, VRMS @ 60 Hz 1200
Voltage Withstand, VRMS @ 60 Hz 2500
ENVIRONMENTAL CHARACTERISTICS
Outer Conductor Integrity Temperature, Deg Celsius 150
Maximum Operating Temperature, Deg Celsius 125
MATERIALS
Outer Conductor Copper
Dielectric PTFE
Center Conductor SPCW
